2). With Cable outside. Cabel Standard: 1.2M, 1.5M, 1.8M. (The rest can be customized.)
3). DC Jack can be: 5.5 x 2.1, 5.5 x 2.5, 4.0 x 1.7, 3.5 x 1.35 etc.
4). Function: Can be used in CCTV, PHONE, STB-BOX etc for Charging.
5). Certifications of the PCB: UL, SAA, KC, CE, CCC, PSE, GS, BS, ROHS etc.
Product details
1. SPECIFICATON OF THE POWER ADAPTER:
|
AC Input: |
|
|
Plugs |
US UK AU EU KR PLUGS |
|
Input Voltage Range |
AC 95V~264V |
|
Variation Frequency |
47Hz~63Hz |
|
DC Output |
|
|
Output Voltage |
5V |
|
Output Current |
1A, 1.5A, 2A |
|
Output Power |
5w-10w |
|
Output error range |
5% |
|
Efficiency |
>85% |
|
Current ripple |
>120mv |
|
DC Jack |
USB, 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, mico 5pin |
|
Environment: |
|
|
Operating Temperature |
0°C—40°C |
|
Operating Humidity |
5%—90% |
|
Protection: |
|
|
Over Voltage Protection |
Short Circuit Protection |
|
Over Current Protection |
Over Temperature Protection |
|
Certificates: |
|
|
UL,BSMI, BS,CCC,CUL,GS,FCC,KC,LVD,PSE,CE,ROHS,SAA,MEPS |
|
|
Package |
|
|
Inner Box |
Normally neutral white paper box or customized requirement |
|
Outer Carton |
Normally neutral standard carton or customized requirement |

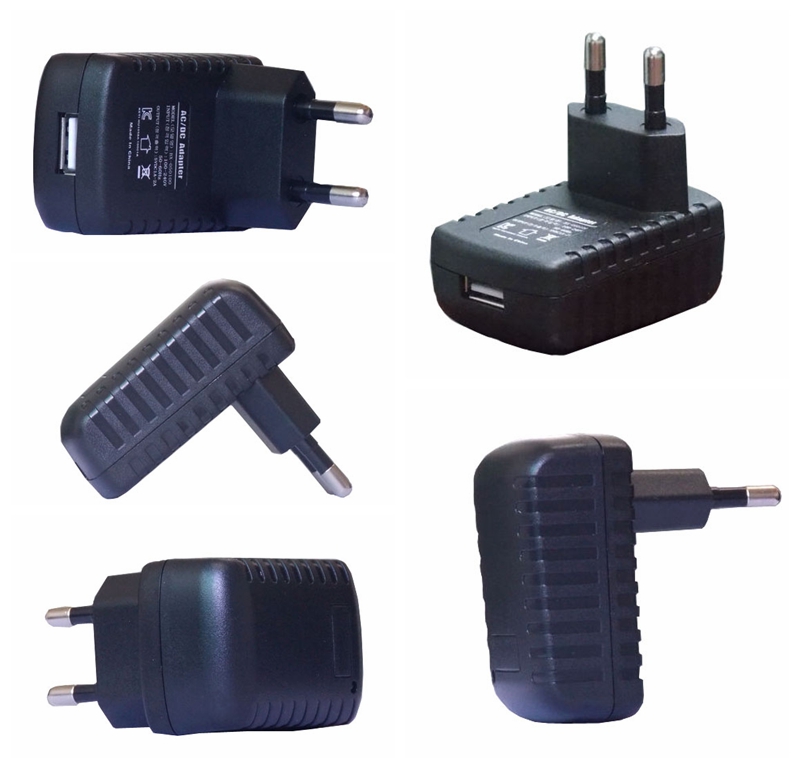

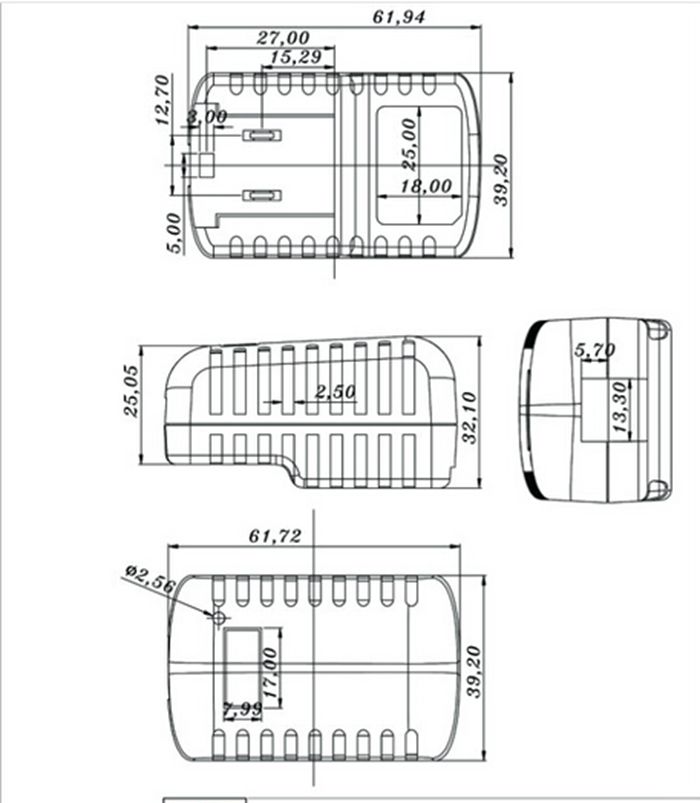

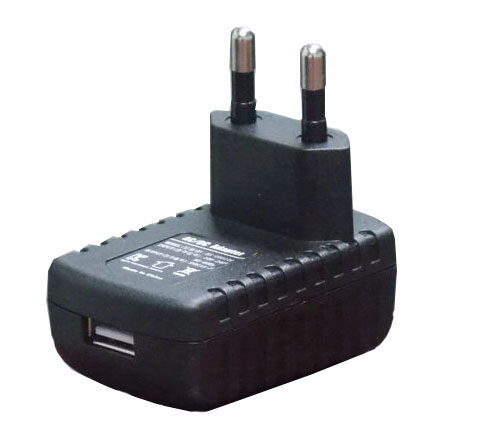

2. PICTURE DETAILS:
3. SERVICE ITEMS:
(1).Within 24 Hours immediate reply and service. from: Monday to Saturday.
(2).Our promises:
A. Well-trained and experienced staffs for answering all your inquiries about our products by fluent English.
B. Quotations are offered for your unique design and some our current models
C. Protection of your sales area, ideas of design and all your private information.
(3).OEM/ODM available:
A. Can customized the company logo on the label, and can customized the packing with customer's design.
B. Can customized the output current and output voltage to meet customer's real inquiry.
C. Can customized the out case shape with customer's design.
D. Can customized the PCB with customer's inquiry or certification needs.
(4).Delivery Terms:
A. We can calculate the order total weight, total meansurement, and make right Packing list to customers for customer to look for right forwarder or agency.
B. If customers need, we can use our frequent forwarder to give you proper quotation and delivery door to door to customers.
C. If customers already have forwarder, we will ship to them after producing.
D. Delivery date always 12-15 business days (Except customized PCB or CERTIFICATIONS).
(5). After-sales service:
A. We will prepare 0.3% spare parts together with order each time (For replacing the problem ones in case)
B. Our products are warranty for 50000 hours with normal working.
C. If normal problems, we can replace or repaire for customers without charge.
