Product details

1. SPECIFICATON OF THE POWER SUPPLY:

Model No.:ATP-300W-5V

Input voltage: 170V-264V

Output power:300W

Output voltage:DC5V

Output current:60A

Features:

Low cost，high reliance

Built-in EMI filter

Low output ripple and noise

Protection function: over load protection/over current protection/ short-circuit protection

Two years warranty

Ac input voltage range :176-264VAC

Input frequency:47-63Hz

Input inrush: Cold-start,40A/230VAC

Output voltage range:±10%

Voltage regulation(full):≦0.5%

Output over load protection:110%-150% intermittent mode，auto-recovery

Raise time, keep time: 50mS,20mS Voltage regulation(full):≦0.5%

Dielectric intensity: I/P-O/P,I/P-FG: 1.5KVAC,,O/P-FG:0.5KVAC,1 min

Working temperature:-40-85℃@100%, -40%@85%, 50℃@60%

Storage environment :--40℃～+85℃,20%～95%RH (nodew)

Safety standard: conform toGB4943, CE-LVD,ROHS

EMC standard: conform toGB9254, EN55022 class A

Cooling method: natural convection air-cooling

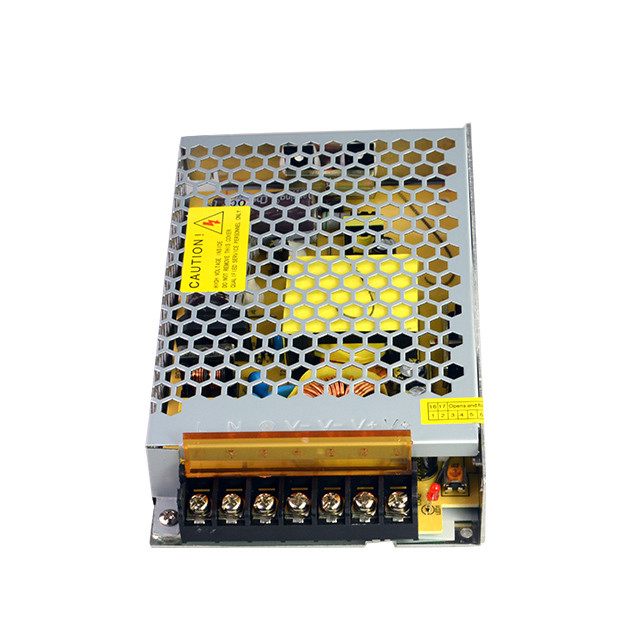

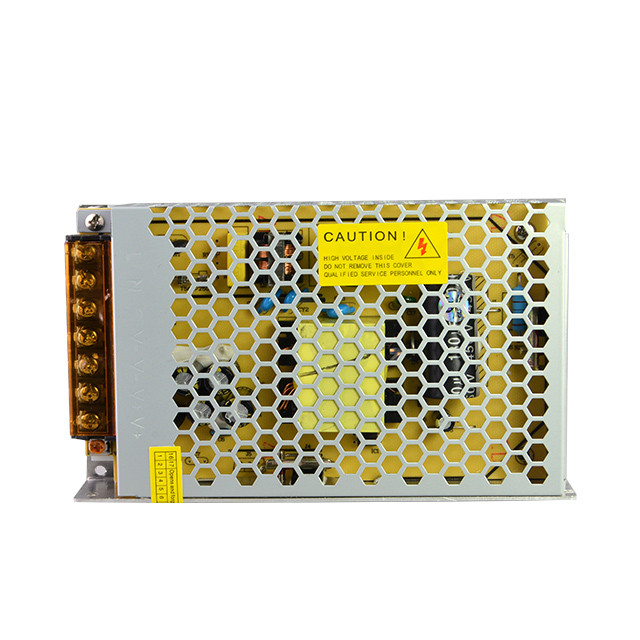

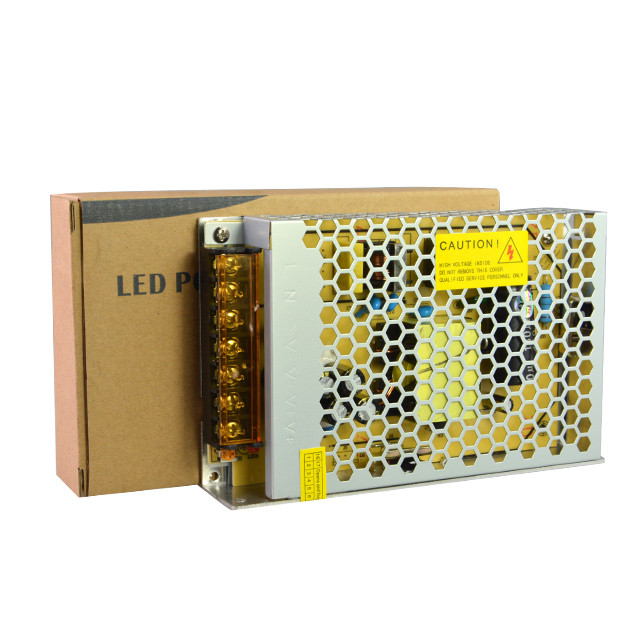

2. PICTURE DETAILS:

3. SERVICE ITEMS:

  (1).Within 24 Hours immediate reply and service. from: Monday to Saturday.

  (2).Our promises:

      A. Well-trained and experienced staffs for answering all your inquiries about our products by fluent English.

       B. Quotations are offered for your unique design and some our current models

       C. Protection of your sales area, ideas of design and all your private information.

  (3).OEM/ODM available:

       A. Can customized the company logo on the label, and can customized the packing with customer's design.

       B. Can customized the output current and output voltage to meet customer's real inquiry.

       C. Can customized the out case shape with customer's design.

       D. Can customized the PCB with customer's inquiry or certification needs.

  (4).Delivery Terms:

       A. We can calculate the order total weight, total meansurement, and make right Packing list to customers for customer to look for right forwarder or agency.

       B. If customers need, we can use our frequent forwarder to give you proper quotation and delivery door to door to customers.

       C. If customers already have forwarder, we will ship to them after producing.

       D. Delivery date always 12-15 business days (Except customized PCB or CERTIFICATIONS).

  (5). After-sales service:

       A. We will prepare 0.3% spare parts together with order each time (For replacing the problem ones in case)

       B. Our products are warranty for 50000 hours with normal working.

       C. If normal problems, we can replace or repaire for customers without charge.
